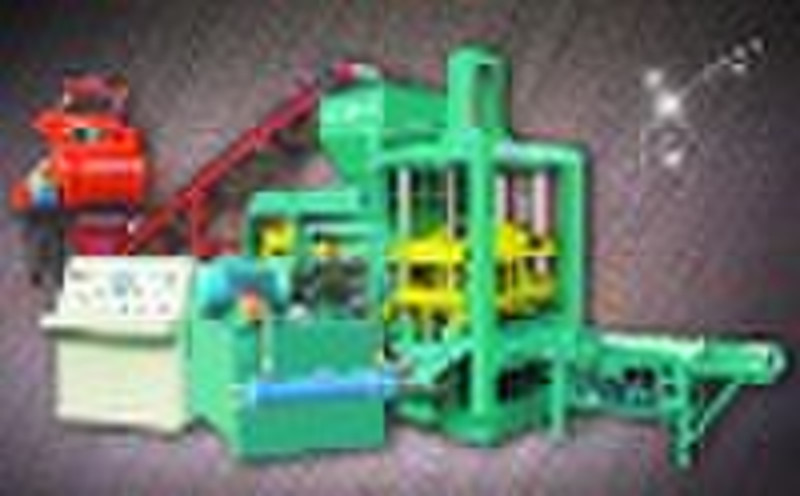

QT4-15B block making machine

QT4-15B Type Block Making Machineintroduction ofblock making machine 1.thisblock making machineis a compact machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and dependablely. 2. Through mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly. 3. The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.Main parameter ofblock making machine 4.overall demension:6800*1500*2700mm 5. rated pressure:16Mpa 6.main vibration form:platform vibration 7.vibration frequency:4600(r/min) 8.pallet size:950*550*40mm 9.molding cycle:15-25s 10overall power:31.2KWproductivity ofblock making machineSize Quantity Cycle moulding Per hour Per day Hollow brick 400*200*200 4 15-20s 720pcs 7200pcs hollowbrick 400*150*200 5 15-20s 900pcs 9000pcs colorbrick 225*112.5*60 14 15-25s 2520pcs 525200pcs
