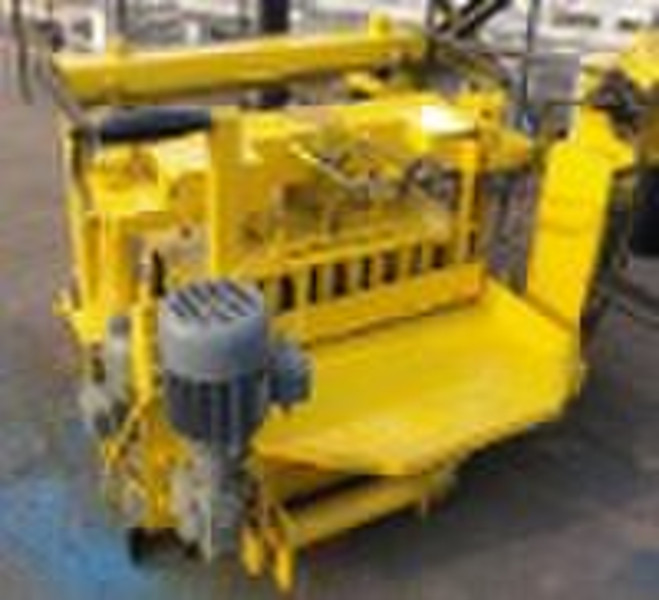

QT12-15 block machine

QT12-15 block machine 1 Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.2 Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.3 The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis. Size Quantity Cycle moulding Per hour Per day Hollow brick 400*200*200 12 20-25s 1728-2160pcs 17300-21600pcs/day Porous brick 240*115*90 30 15-20s 5400-7200pcs 54000-72000pcs/day Standard brick 240*115*53 60 15-17s 12700-14400pcs 12700-14400pcs/day Main Paremeter1. dimension :9350*2520*2950mm2. Rated pressure :21MPa3. Main vibration :platform4. Vibration frequency :2800-4500r /min5. Pallet Size :1300*900mm6. Molding Cycle :15 25(s )7. Overall Power :46kw
